When you test the battery, please follow the steps below:
Step 1: Connect the OBD cable first
Step 2: Connect the short battery cable
Note：
OBD II diagnostic cable length: 39.37 inches
Battery test cable length: 14.96 inches

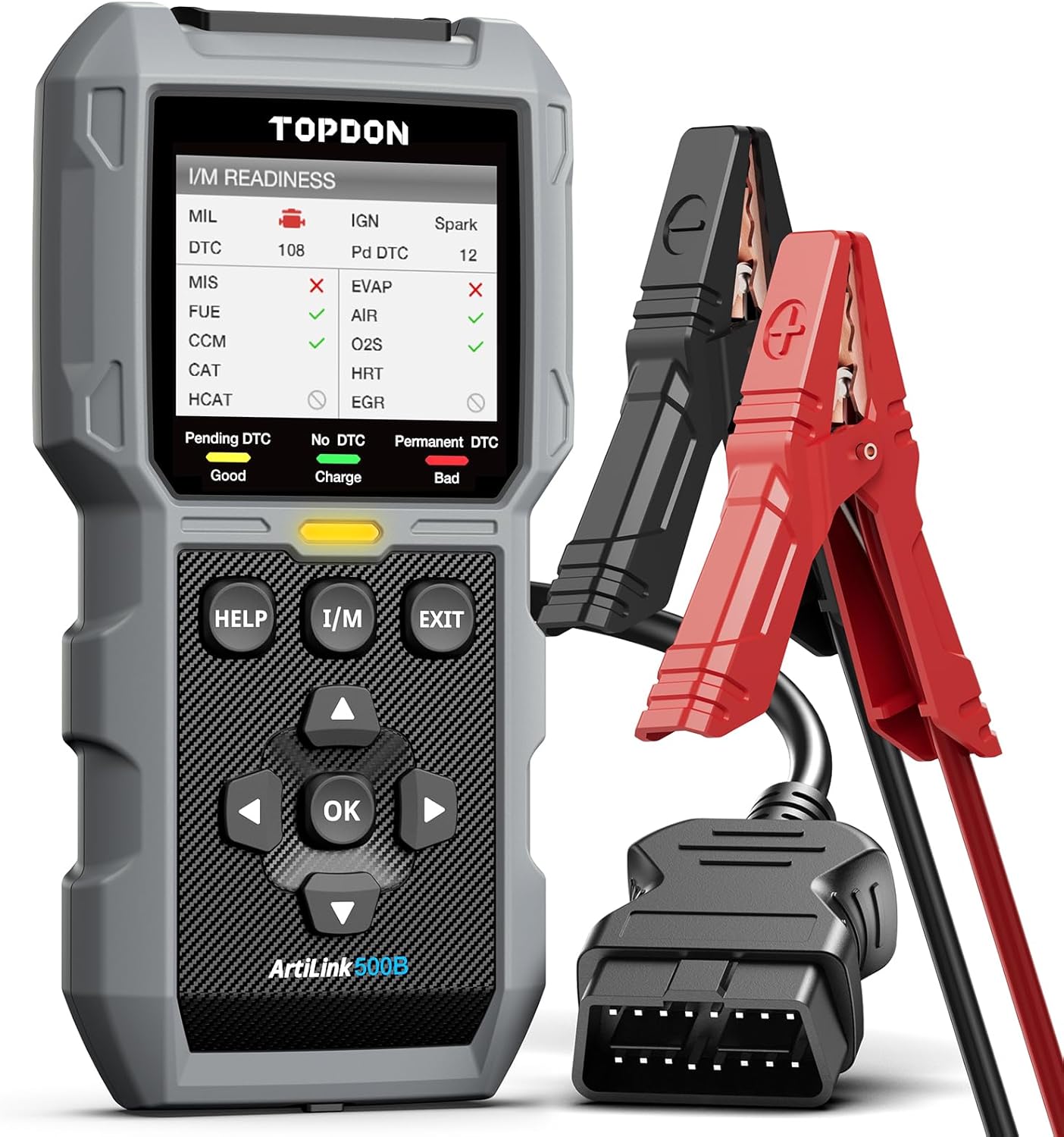

TOPDON AL500B 2 in 1 Scanner
TOPDON OBD2 Scanner
OBD2 Scanner & Battery Tester: The AL500B is a 2-in-1 tool that works as an OBD2 code reader and battery tester. It supports full OBD2 functions on most models released after 1996. Battery testing for 12V batteries shows a battery’s health. Cranking and charging tests are supported for 12/24V batteries
Get All The OBDII Data: TOPDON AL500B works as an OBD2 scanner, supporting full functionalities including reading DTCs, clearing DTCs, Viewing Freeze Frame Data and ECU version lookup. It also Includes a one-touch I/M ready button for a quick smog status check and displays the data stream intuitively with waveform graph
Pro-level Battery Tester: The AL500B supports Battery testing for 12V batteries to show a battery’s health, current, charge, voltage, internal resistance, and rated CCA. Cranking tests supply information about the cranking voltage and time for 12V/24V batteries. Charging test for 12V/24V batteries display the charging system’s voltage output
Multiple Application Scenarios: By performing a battery test to know the status of your battery before you start your vehicle, this battery tester can save you from getting stuck in a car running out of electricity
Wide Compatibility & Multiple Languages: This 2-in-1 code reader & battery tester supports full OBDII diagnosis for 50+ brands, providing greater access to crucial information on even more vehicles. It also supports 7 languages. DTC library can show the DTCs definition directly. (Contact us for compatibility before purchase)
Software Update, Print Test Result Report: Equipped with a mini USB port, this AL500B can be upgraded via computer, and a diagnostic or battery test result report can be printed immediately when connected to an office computer.
StarMechanics –
Quick, Accurate, and Easy to use
What a quick and easy scanner to grab and go get that data.Instead of grabbing the big scanner that takes awhile to boot up,I was able to get on the road and get O2 Sensor data in secondsand graph it out to see how the Catalytic Convertor was functioning.Easy to read screen which is important for me.Topdon has made a quality product here that is usually my first grabfor a quick diagnosis in a small easy to hold handheld tool. It readsmode 6 data and can do a few special tests on most supported vehicles.The scanner also comes with another plug in cord to checkbatteries. This is so handy. Got to check those batteries every timea vehicle comes in. Don’t want our customer to get stuck needing a jump.I compared the battery tester to a Midtronics and had identical results.Printing function could be easier to use with more Printer drivers.Memory in unit will provide a lookup even after the tool is disconnected.Forgot your code? It is stored in memory in this tool.I have made this my quick and easy go to for quick diagnosis.I will update again after a few months of use.
Oscar Sanchez –
Great product super useful for DIY and even in a shop environment
It is a handheld code reader it has graphing for up to 2 pics. It is fast, it is easy to use. The fact that it can test a charging system too is awesome. I have tested a few at the shop I run and it is as accurate as the other equipment I use. It has become the first one to pickup for ease of use.
Dusty S. –
TO GET THIS TOPDON LOAD TESTER AND OBD SCANNER FOR UNDER $100 IS UNBELIEVABLE! GREAT INVESTMENT
This this is AWESOME! Battery load tester does it all plus you can send results to a printer for your customers. Test battery, charging, and starting systems.The OBD SCANNER is very handy! Compact but very capable. Even has a trouble code lookup so no more pulling out the phone to look up codes!For price, size, and capabilities I give this a 9/10. (Only think that could make it better is a built in printer.)GREAT INVESTMENT!
ho –
Great product for great price with 2 in 1 device
This review is long and please be patient with me. I am a professional technician with almost 20 years of experience. This device impressed me when I opened the box. There 4 parts: device, OBD II cable, battery tester cable, and USB cable for the update. It works like a champ when came out of a bag. These are 2 devices in 1 unit: an OBD II scanner and a battery tester. There is no internal battery in it. It was powered by a vehicle battery to turn it on. First is scanner: scanner works like every OBD II global scanner with Read codes, clear code, monitors readiness, live data, graphing data… and it is very fast responding but no testing available. Second is the battery tester: this tester is very accurate so far. I had a customer come to our shop with concern about dragging start, the vehicle still starts every time but she said feels like a hiccup before it starts. I put this tester on her battery and did the test. the result shows need a new battery even her battery voltage shows 12.80V but the amperage isn’t enough causing the dragging start. Then I test a new stock battery on the shelf it shows “Good battery” even though its voltage was lower than her battery. if you notice on the device: Red LED means “need replace battery” Green means “Good battery” and I think Orange means “charge retest”. I used this device for 3 days in a busy shop, and all my technicians and lube techs love it. I think Topdon had been listening to all reviews from people who used BT100 and they did some improvements: longer battery tester cable, the cable attached to clamps had been secured by a metal clip, preventing the cable from breaking off like BT100, and when you hold the up and down to select CCA, the number didn’t jump to hundred like BT100 instead jump every 5 unit. However, I think Topdon can make it better if they use Bluetooth for OBD II. Switching from OBD II to battery tester cable is OK for DIYers but for technicians is annoying and chance to damage the device when you switch 100 times a day. The conclusion:Pros: fast OBD II scanner, accurate battery tester, affordable priceCons: (actually not more like a recommendation) annoy me when switching from cable to cable, hopefully Bluetooth device for OBDII with be improved on a later device.Hope this review helps someone out there looking for 2 in 1 device that won’t break the bank. I will follow up and update this after couple months to use this device to see how it stands up in a rough environment.
GLaDOS –
Solidly made, works good overall!
Physically, this tool is well made, though it’s made of plastic it feels well build. The buttons are very tactile and easy to operate when wearing gloves. The Artilink500b works well as a basic OBD2 code scanner and monitor as well as a self contained battery load tester. Impressively, the tool even comes with a case and decent looking PC software for performing firmware updates and ‘printing’ the data. The display of the tool is very bright & has a dedicated LED light to show you both detailed information and a pass/borderline/fail indication.I have 4 complaints though:1) Their is no way to name saved data, the tool simply assigns each test a numerical value counting up from 1. As such trying to keep track of test results is not easy.2) Like many people, I feel the leads for the car battery tester are too short and do not meet the advertised claims.3) The tool does not have a battery and as such requires you to power it from an external source anytime you want to access the data that’s on it. for instance: say you test a car battery and forgot to note down the result, you then have to either plug the tool into a car and turn the car on, plug a usb source into the tool, or re-connect the tool to the battery. For ~$87.00 I feel including a battery to power the tool should be standard.4) The tool does not support basic service tasks. For instance this tool can’t do a BMS or oil reset, it can only read/clear codes and data from the car. As code scanners with this capacity are around ~$100 I would expect the capability to be present in this tool.So the long and short of it is: This is a great tool for if you need to do occasional OBD2 code scanning and if you want to be able to test your own car battery & charging system because your car can’t conveniently break down only at shops.
Thisguy79 –
Does exactly as described, very simple to use and was very affordable
El Peter –
Anteriormente compré uno de otra marca que fue una porquería, pero este producto cumplió todas mis expectativas, la calidad es muy buena, fácil de usar, es muy buena herramienta para mí taller, lo recomiendo.
sAM –
great scanner, well built and very useful
RUIZ TOBON ALBERTO –
no me gusto
