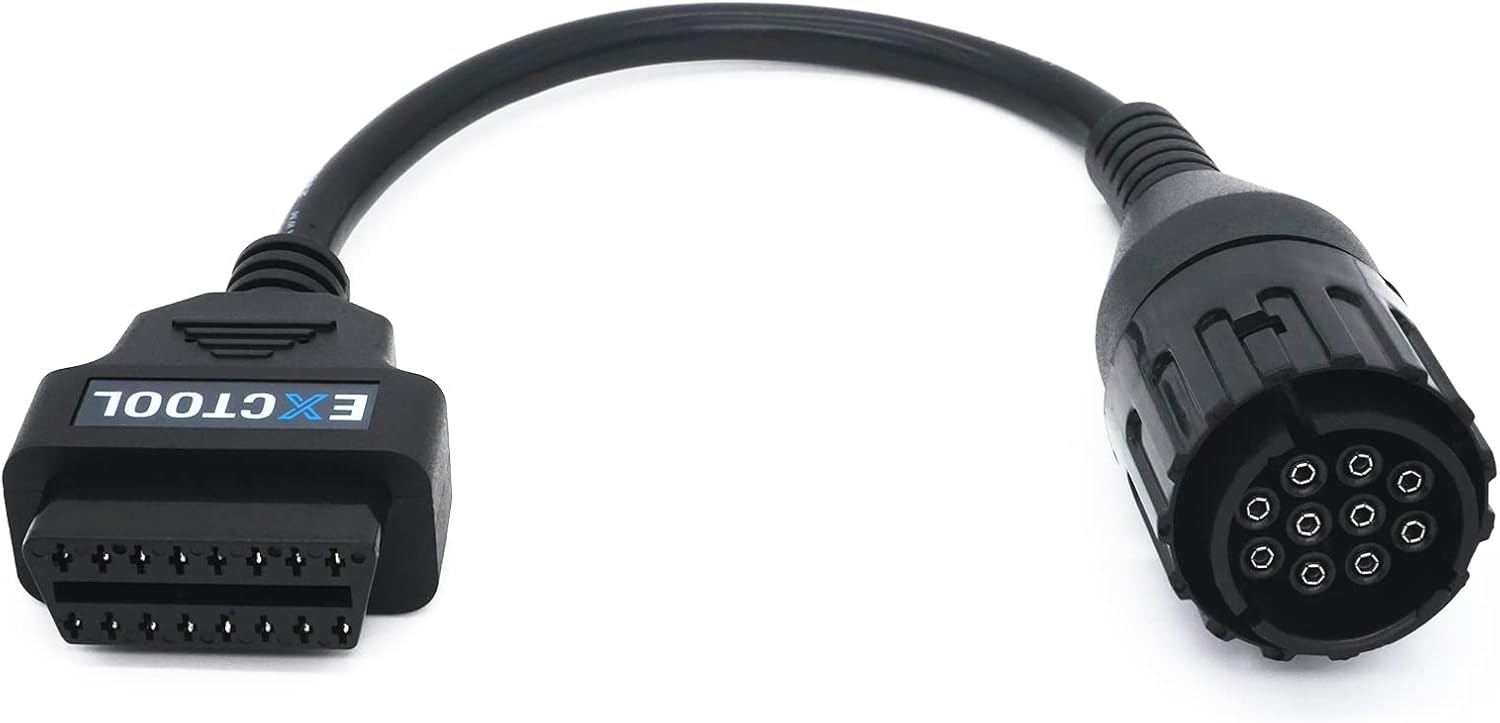

10 Pin to 16 Pin OBD2 Adapter for BMW Motorcycles
Create an OBD II connection for your motorcycle to read error codes, real-time data, reset service interval, etc.
Using MotoScan App for Android
The must-have accessory for diagnosing your BMW motorcycles
Connect one end of the adapter cable to your bike and the other to a Bluetooth OBD2 scan tool, then you can connect to the electronic control system of your motorcycle via standard OBD II.
With a suitable wireless OBD2 scan tool (for example OBDLink LX/MX, UniCarScan UCSI-2000 or ELM327 diagnostic scanner) & App like MotoScan, you can diagnose and code your motorbike, read real-time sensor data, reset service internal, and more. Below Apps are available:

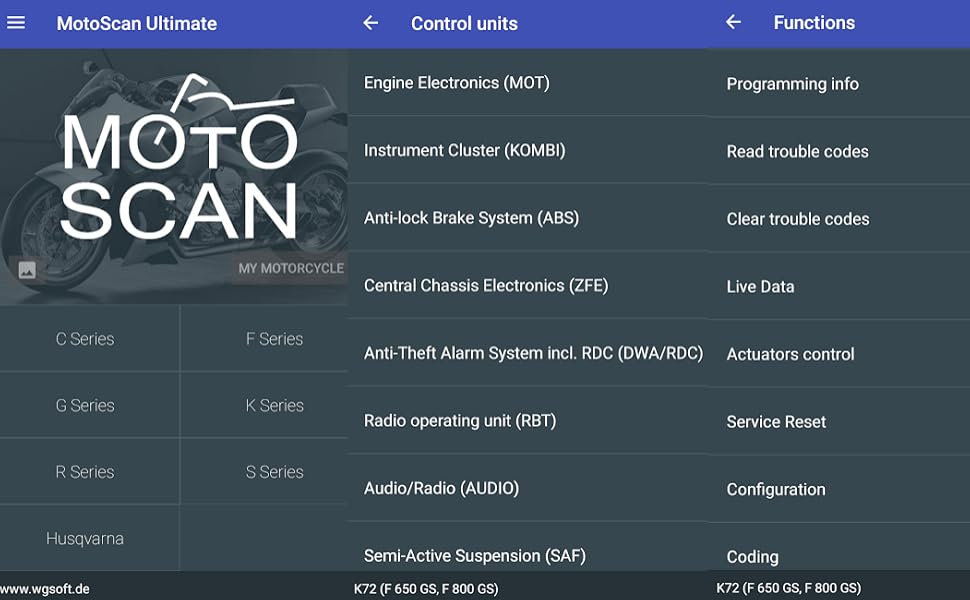

MotoScan in the Goole Play Store.
Features:
High performance adapter cable compatible with BMW motorcycles with specific 10-pin diagnostic connector.Cost-efficient solution ideal for motorbike maintenance that can be used both in mechanical workshops and by home users.Durable and reliable: ABS material, 20 AWG cable, 30 cm long. Also compatible with ISTA-D, ISTA-P, and other BMW diagnostic or coding tools and programs.
Note: This is only the adapter cable. OBD2 device and software are not included.
*On later (2016+) EURO4 compliant bikes, the connector will be the rectangular 16 pin OBD II compatible form factor.
*The round 10-pin connector, usually covered with a cap, can be found underneath the triangular panel, under the rider seat, under the rear portion of the seat, under the front or rear of the seat, behind right front panel, etc. Please check the bike manual for the diagnostic port location.

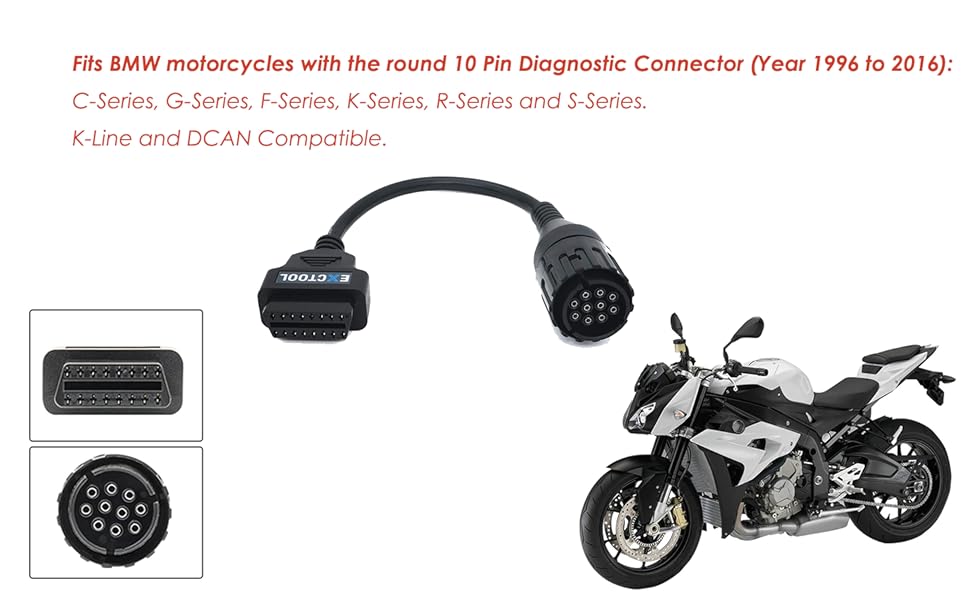

Fits BMW motorcycles with the round 10 Pin Diagnostic Port (Approx. 1996 to 2016).
Allows you to diagnose your BMW motorcycles, read real-time sensor data, reset service intervals and more via your chosen diagnostic tool and App (not included).
Connects to the electronic control system of your motorcycle via standard OBD II. Compatible with ELM327-based, OBDLink series, K-Line and DCAN tools.
Compatible with MotoScan App, ISTA-D, ISTA-P, and other diagnostic or coding programs.
Quality moulded plug. Manufactured with high quality, automotive grade materials (20AWG) for superior stability and durability.
