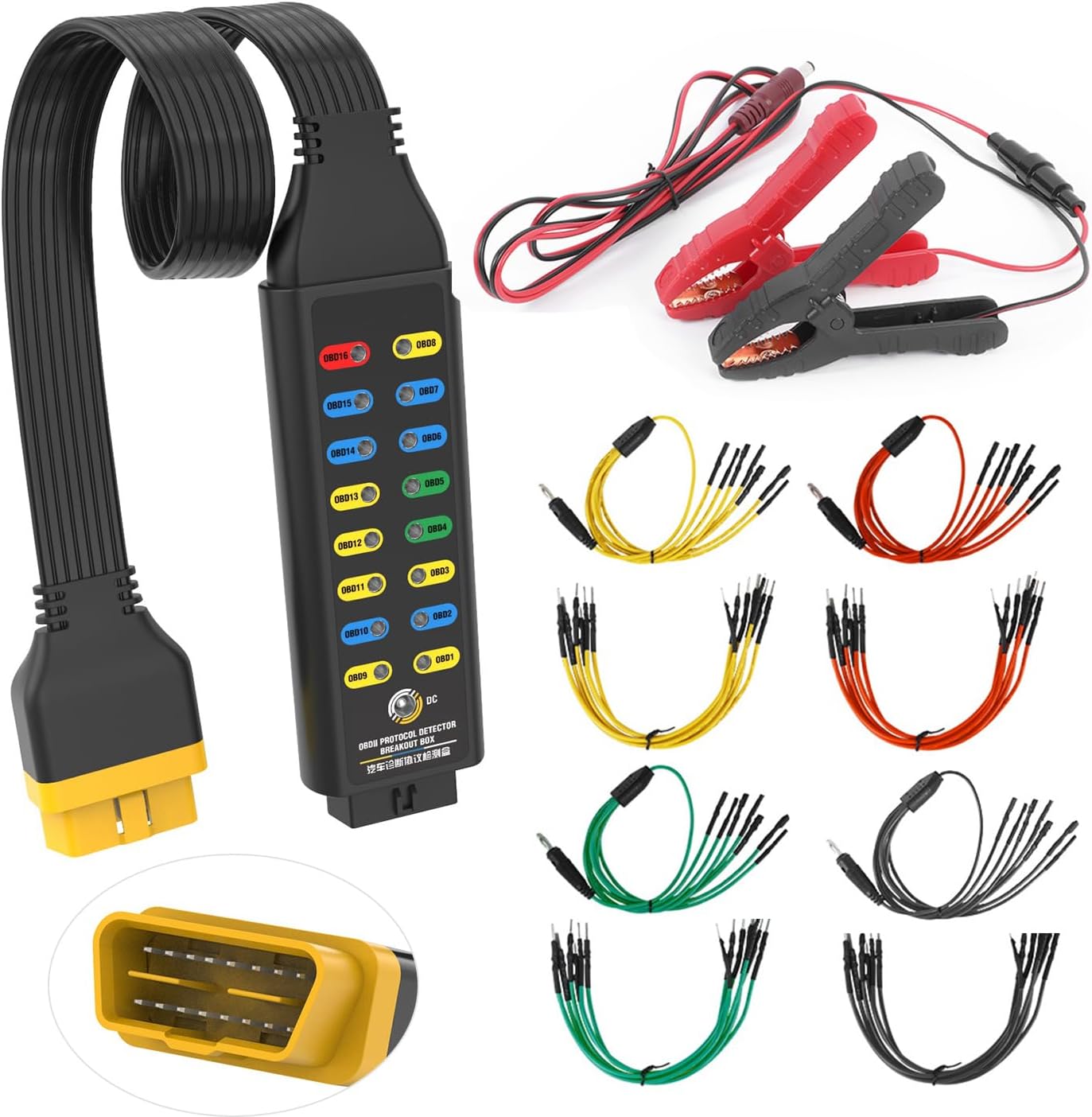

【Basic Introduction】The upgraded OBD2 Breakout Box is a specialized automotive tool designed for OBD diagnostic link connectors. It enables simultaneous connection to multiple diagnostic devices for testing purposes. This tool offers convenient and secure access to the OBDII connector, allowing for the monitoring of protocol signals, power, and grounds.
【Powerful Features】This breakout box kit can also power the on-board computer, test OBD voltages, and perform other functions. The OBDII Breakout Box can be easily connected directly to the vehicle’s on-board data link, providing straightforward access to the vehicle’s data bus line.
【16 Pins OBDII Interface】The input jack arrangement of the OBDII diagnostic link connector faithfully replicates the 16-pin configuration of the OBDII interface. This design facilitates rapid and straightforward testing of a wider range of connections, granting you swift access to all 16 pins for efficient vehicle servicing and diagnostics.
【Built-In 4mm Input Jacks】The Automotive OBDII Protocol Monitor features built-in input jacks compatible with 4mm banana plugs, facilitating easy connections to multimeters or oscilloscopes for more in-depth measurements. By linking to a DC 8V-30V power source, it can supply power to the vehicle’s ECU, making it useful for battery replacements and related tasks.
【Flexible Cable & 5ft Battery Alligator Clip】 The OBD II extension cable spans 17.7 inches, Crafted from supple thermoplastic TPU material, which is durable.The 5-foot battery alligator clip cable is tailored for DC2.1*5.5mm connections, perfectly suited for DC12V at 2A power supply.
【Multiple Protocol Types Testing】OBDII Protocol Detector supports for CAN bus, K line, L line, and PWM protocol testing, encompassing a wide array of protocol types. With the inclusion of 4 sets of universal wire jumpers, it facilitates concurrent connections to multiple diagnostic devices, allowing for flexible and adaptable wiring configurations.
【3-YEAR WARRANTY】 For damage caused by non-human factors, LUTIFIX promise to resend parts for free within 3 years. Any questions, please feel free to contact us, we are sure to provide you a satisfied solution within 24 hours.
【Warm Note】 This breakout box is directly connected to the vehicle data link. Do not use this product to connect a load device with a power exceeding 1 ampere. Do not directly short-circuit the 16th pin, the 4th pin, and the 5th pin of this product.In instances where uncertainty arises regarding potential operational repercussions, it is recommended to immediately cease using the product.
Avi –
Built to Last
The build quality is substantial. I was shocked at the quality for this price point. The jump lead assortment is really a bonus! And to add icing to the cake, the large battery clamps and DC cable are an awesome feature. No more trying to keep power on the battery cables when needing to remove battery for maintenance…Now I can use my oscilloscope to monitor CAN bus activity easily.
Bucky from Florida –
Works great
Finally got to use it and it’s great. Makes reading CAN Bus resistance and voltages much easier.
Alexthebuilder –
What is most important for me is the quality of this tool.
I purchased this to do side work for mechanics. I compared it to others and compared to the older models this is an updated version without the voltage reading but does it job as it designed to be. I have used this a few times and it works as it should. The price hit the bill and in the future I might upgrade to a more expensive but for now this will work.
luke –
Very convenient and a lot more options I’ll use I didn’t even need with the buy
Great product to have to replace a battery alive and keep vehicle alive so you don’t throw codes
Barb –
Good – but !
You almost need a hat to use this – the bugs will fly in your face.
Luis –
OBD2 break out box
Not for beginners . You need to know what you are doing .
Joe Sicspak –
Works fine.
Worked great for me. Much easier to connect your meter and/or oscilloscope to see the network activity.
Mark Armstrong –
Shocking good quality
I was shocked how good the quality was given the innexpensive price. It so refreshing normally it goes the other way. Nice change Thankyou!!
Quiskici –
Il manque des connectiques pour le bench
Cliente Amazon –
Rispecchia la descrizione
Toppen –
Mycket bra och bra kvalitet
Javier Ardanaz –
Funciona perfecto,se ve de calidad,a buen precio
D howell –
Well made. Cant beat it for the money especially with all the brake out cables.
