EZROAD Hand Held Diagnostic Analyzer Cable Kit Compatible with JLG Boom Lift Scissor Lift Troubleshoot Program w/Instructions

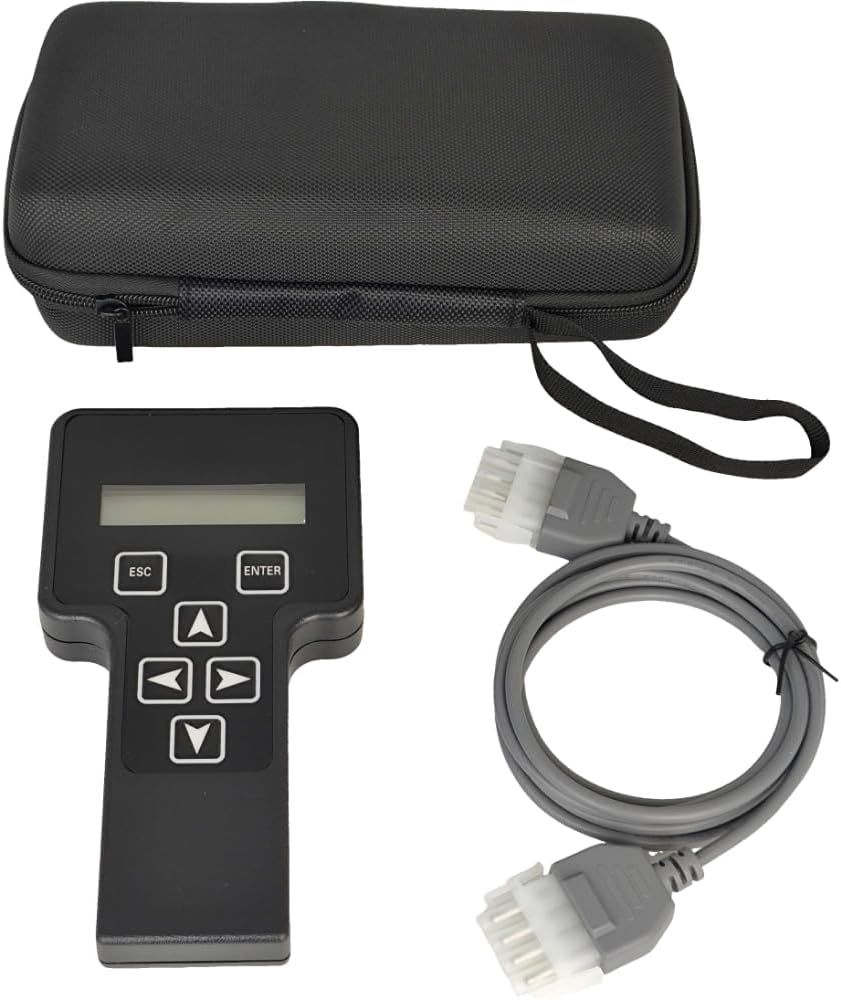

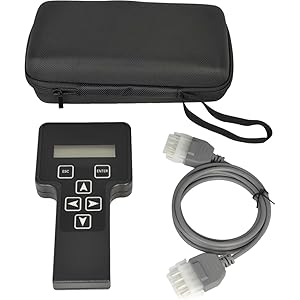

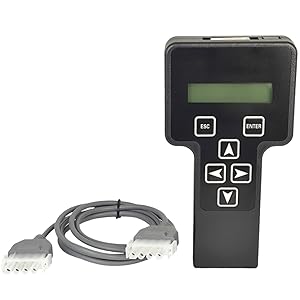

Package List 1X Analyzer 1X Cable 1X Analyzer Storage Box 1X Instructions (Connect, Using, Changing the Access Level, Adjusting Parameters) Note: This is an Aftermarket part, not an original. It is compatible with your device and will function like the original.
Part Number 1001249695, 1001249694, 2901443, 1600244, 1060633 Compatible with JLG Scissor Lift: 6RS, 10RS, R6, 1932RS, 3248RS, 1230ES, 1532E2, 1932E2, 2032E2, 2632E2, 2646E2, 3246E2, 1532E3, 1932E3, 2033E3, 2046E3, 2646E3, 2658E3, 1930ES, 2030ES, 2630ES, 2646ES, 3246ES.
Compatible with JLG Boom Lift: 1100S, 1100SJP, 1200SJP, 1250AJP, 1500SJ, 340AJ, 450A, 450AJ, 450AJP, 510AJ, 600A, 600AJ, 600S, 600SC, 600SJ, 601S, 660SJ, 660SJC, 740AJ, 800A, 800AJ, E300A, E300AJ, E300AJP, H800AJ.
Connection

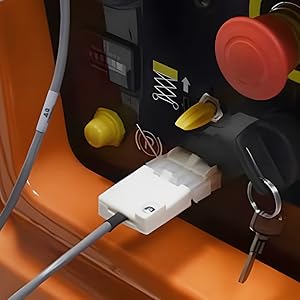

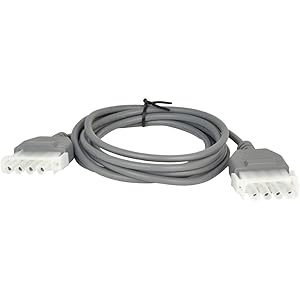

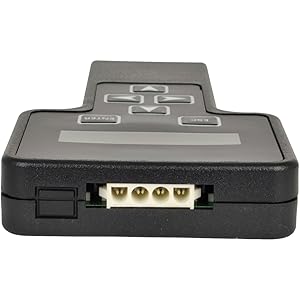

Connect the four-pin end of the cable supplied with the analyzer to the diagnostic port and the remaining end to the analyzer.
The cable has a four-pin connector at each end; it cannot be connected backwards.
Attach the analyzer near the ground control station.
This Analyzer Kit is an essential diagnostic and programming solution for all Mobile Elevated Work Platforms (MEWPs).
Designed for field efficiency, this lightweight tool enables technicians to:
Rapidly identify fault codes.Activate/deactivate machine-specific featuresFine-tune operational parameters (e.g., hydraulic thresholds, safety limits)Streamline repair workflows with real-time system adjustments
EZROAD: Your Trusted Partner for Aftermarket Vehicle & Equipment Parts
EZROAD supplies high-quality aftermarket parts across all major equipment sectors—automotive, construction, agriculture, powersports, marine, and outdoor power industries.
Vehicles: Cars, trucks, motorcycles, ATVs/UTVs, and golf cartsHeavy Equipment: Tractors, loaders, aerial lifts, and earthmoving machineryMarine & Outdoor: Watercraft engines, lawn mowers, and utility vehiclesWhy Choose EZROAD?
Expert GuidanceOur team provides installation support to minimize downtime.
Need a specific item?Share the part number, image, or details—We continuously expand our product line based on customer needs, with new items typically available within 30 days of customer requests.
Part Number: 1001249695, 1001249694, 2901443, 1600244, 1060633. This kit replaces previous part numbers 2901443 and 1600244.
Compatible with JLG Scissor Lift: 6RS, 10RS, R6, 1932RS, 3248RS, 1230ES, 1532E2, 1932E2, 2032E2, 2632E2, 2646E2, 3246E2, 1532E3, 1932E3, 2033E3, 2046E3, 2646E3, 2658E3, 1930ES, 2030ES, 2630ES, 2646ES, 3246ES.
Compatible with JLG Boom Lift: 1100S, 1100SJP, 1200SJP, 1250AJP, 1500SJ, 340AJ, 450A, 450AJ, 450AJP, 510AJ, 600A, 600AJ, 600S, 600SC, 600SJ, 601S, 660SJ, 660SJC, 740AJ, 800A, 800AJ, E300A, E300AJ, E300AJP, H800AJ.
Function: Troubleshooting, Programming
Package List: 1X Analyzer, 1X Cable, 1X Analyzer Storage Box, 1X Instructions (Connect, Using, Changing the Access Level, Adjusting Parameters). Please contact the seller’s customer service after your purchase to obtain the Service & Maintenance Manual PDF.
Note: This is an Aftermarket part, not an original. It is compatible with your device and will function like the original.
