Product description

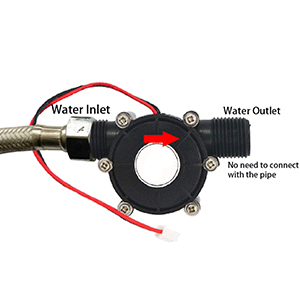

Correct use The direction of water flow must not be reversed, otherwise the generator may be damaged.
Small The product is small in size.easy to install.

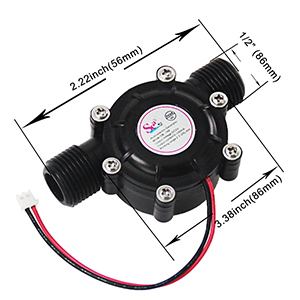

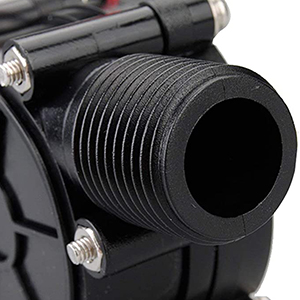

G thread Universal 1/2″ G thread.Easy to install to adapter.
Attention

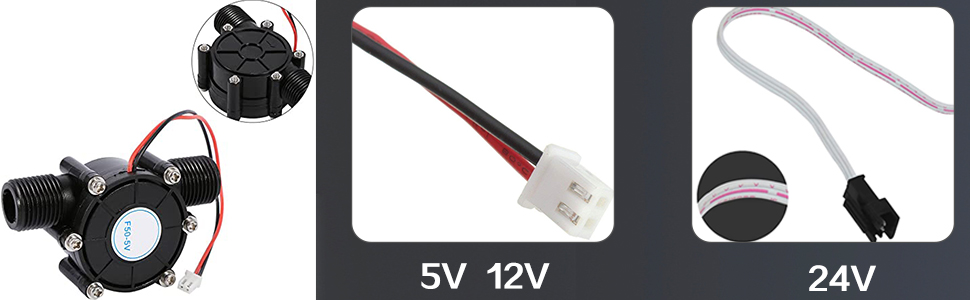

DC5V/DC12V with two wires.AC24V with three wires.

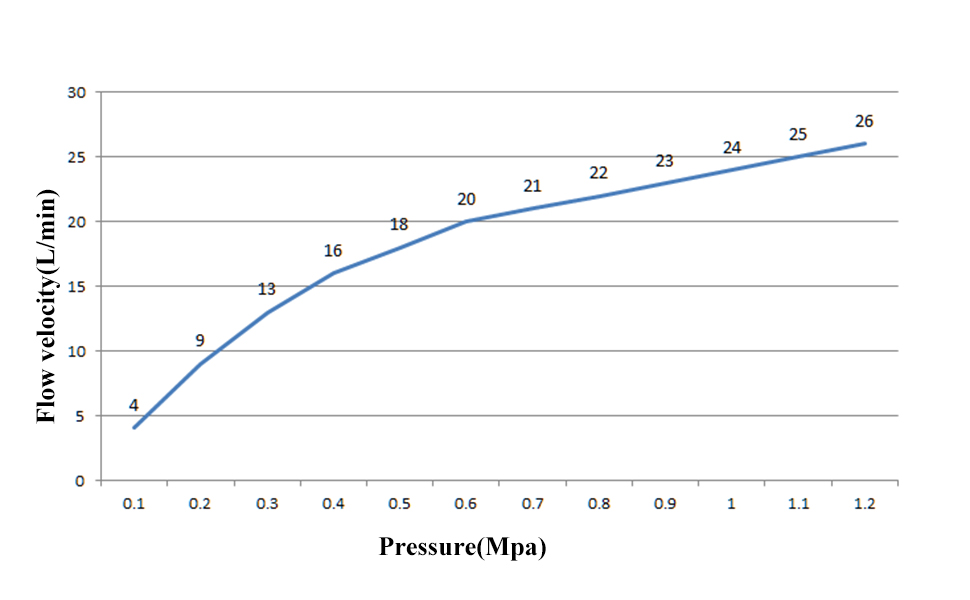

Comparison table of water pressure and flow rate
Technical conditions
The output voltage :12VBetween the wire resistance 10.5 ± 0.5ΩInsulation resistance 10MΩ (DC100 )The maximum pressure 0.6Mpa outlet closedThe outlet opening maximum pressure 1.2MpaStart pressure 0.05MpaThe mechanical properties and the operating environment:Appearance: generator surface clean , no rust, no scratches when significant , solid structure .Axial clearance 0.2-1.0mmMechanical noise ≤55dBThe amount of the Generator : 90g aroundGenerator Life : ≥3000hOutput characteristics: the output voltage with no voltage regulator is proportional to the water pressure.
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.1 out of 5 stars 28
4.0 out of 5 stars 174
4.1 out of 5 stars 76
Price
$9.99$9.99 $11.99$11.99 $11.99$11.99
Voltage
DC 5V DC 12V AC 24V
Number of wires
two two three
The output voltage :12V DC; The outlet opening maximum pressure 1.2Mpa
Mechanical noise ≤55dB; Generator life : ≥3000h
Can give the 12V radio power, charging, power supply to the 10W LED lights, the maximum charge current 220mA.
The output voltage with no voltage regulator is proportional to the water pressure.
Appearance: generator surface clean, no rust, no scratches when significant, solid structure.
Stealth –
Quiet operation and a great replacement
Bought this to replace different water turbine generator to run led shower indicator and worked great. Also smaller enough compared to the old one that was previously installed that I replaced before, that I also bought here in Amazon, but only lasted 6 months after installing. Hopefully this one last longer. Also a lot quieter than the previous water generator.
Intergalactic Professional Services –
They did what I wanted them to do.
I purchased these to power a 12v led at my cattle water troughs so I could see when the water was running so that I would know if something was leaking or my float was not working properly. Works as intended.
John T. –
My son and I installed this replacement
My son and I installed this replacement part in our shower panel in a matter of minutes. I hope it lasts. We have strong water pressure which is probably what blew the original.
Amazon Customer –
Poor
Did not work and poor quality
Eric Stump –
Stumps garage on you tube
Works great
Harry B. –
Good Product
Performed as advertised
C. Field –
Smaller than expected
Was much smaller than I expected but that may or may not be a good thing but it seems to work as advertised
Kenneth betke –
Cheap but works
Works
