Battery Charger Electromechanical Timer Kit – 120 Min with Hold – Includes Knob, Mounting Hardware, Dial Labels – Threaded Bushing Mount, by Power Forged (697203)

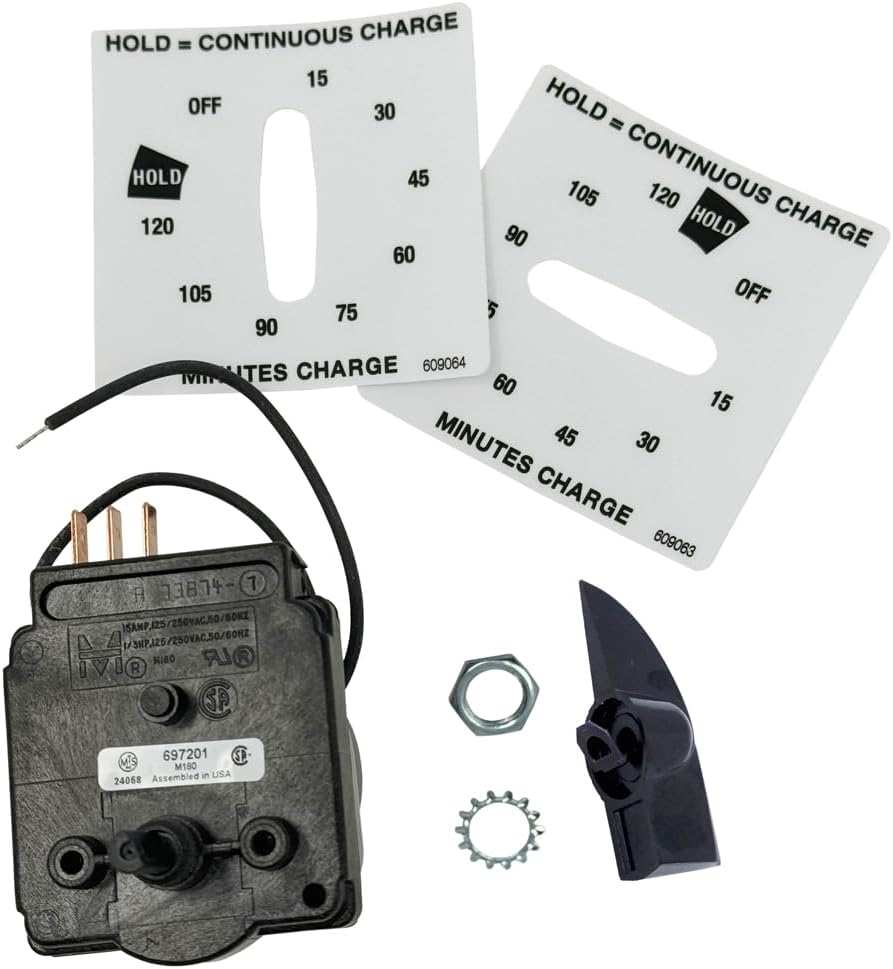

Battery Charger Electromechanical Timer Kit – 120 Min with Hold – Includes Knob, Mounting Hardware, Dial Labels – Threaded Bushing Mount, by Power Forged (697203) This timer kit contains components necessary to replace obsolete electromechanical timers in many older battery chargers. The included dial labels are particularly helpful in retrofit applications – for example, replacing a 90-minute timer. Note that these installations are not direct “bolt‑in” replacements. Some modification of the charger cabinet may be necessary (e.g.- drilling holes), as well as a basic electrical knowledge and skill level. Basic electrical tools are necessary. A multi‑meter may also be required. This switch typically mounts in one of two orientations: 1. Horizontal Mount – the mounting screws are aligned horizontally (at 3 and 9 o’clock) and the OFF position is at approximately 2 o’clock on the timer dial face. 2. Vertical Mount – the mounting screws are aligned vertically (at 12 and 6 o’clock) and the OFF position is at approximately 11 o’clock on the timer dial face. In either orientation, the timer has a “HOLD” position (constant ON) when rotated counterclockwise from OFF by approximately 15 degrees. Otherwise, when rotated clockwise to a set position, it will countdown back to the OFF position and power off the charger. Specifications: – .250″ Push-on connectors – Switched Current Rating – 15A, 125/250VAC, 50/60HZ – Timer body – 2.476″H x 2.01″W x 1.969″D – Stem – .815″L x .248″ Diameter Contents: 1 – 697201, 120-minute electromechanical timer with panel nut and lock washer 1 – 696550, spring clip pointer knob (EXACT OEM replacement for Associated 603147) 1 – 609063, timer dial label – horizontal mount 1 – 609064, timer dial label – vertical mount 1 – Installation Instructions
Mounts in charger panel with included panel nut and lock washer
120 Minute duration, with “HOLD” position
Straightforward instructions and simple design allows easy installation. No special tools are required, though drilling may be necessary
Industry-standard .250″ solderless push-on connectors
OEM Associated Equipment Charger Knob with spring-clip retainer included
Made in the USA
