Why need this item?
Lots of cars do not have 16 pin connector,such as some old cars. But now lots of diagnose tool is 16 pin connector,so need to convert
To convert diagnose tool which is 16 pin connector.
Universal OBD2 16 Pin Connector. Palm Size ,It is a ecessary part of the scan tool
Plug and Play,do not require the manual.
Easy to install,durable,waterproof.
Convenient to use,plug and play.
Just a small connector,do not have any software.
Be used to convert into 16 pin connector for the car.
Pin:16 pin
Compatibility Fit for most car
16 pin goes to Postive , 4 pin goes to Negative
On the inside soldering points, the 4,5 terminals are easy to find (they have lines pointng to the terminal they’re connected to.
With PCB,this item can connect with circuit board and obd pigtail opening welding cable.used to attach an ECU chip . The breakout board is already soldered to the pins
There are 16 perfectly good solder points right in,Works great for making OBD2 to Ethernet adapters.

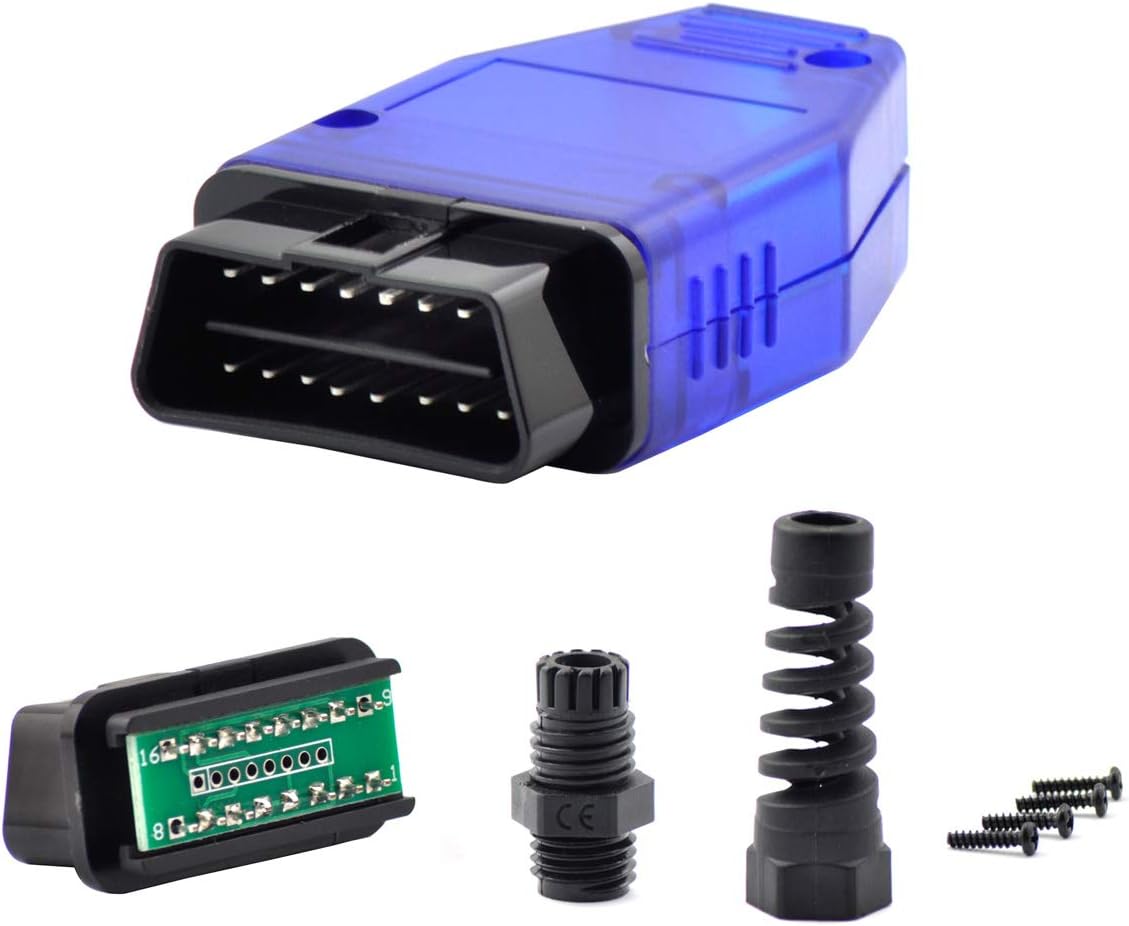

What You Get:
1x OBDii II 16 Pin Male Plug
1x Shell(Upper and Lower Shell)
1 x Net tail
4 x Screws
Male Adapter with PCB: It can connect circuit board or weld line with PCB board.The shell is easily four inches long, plus a spring strain relief. you can put the majority of esp-32 based CAN sniffer in the shell itself.
The soldier pads inside the shell do not have all the pins broken out, but you can just solder to the pin connections directly for odd pin outs. Note that the ground is joined in the shell.
Used to build a breakout box:Lots of cars do not have 16 pin connector,such as some old cars. However now lots of diagnose tool is 16 pin connector,so need to convert.No trouble wiring it into a memory saver, to apply 9V to the computer so I can change the car’s battery without losing the power-seat memory.
Notice:It is just a small connector,do not have any accessory or software.Has a circuit board you could tack connections.
Package Include:Standard 16Pin Male Plug x 1; Shell(Upper and Lower Shell); Net tail x 1; Screw x 4
AstroAI Car Battery Tester, 12V/24V Digital Automotive Meter Diagnostic Tool Accurate,100-2000 CCA Load Capacity, Alternator Analyzer, for Preventive Maintenance Truck, RV, Marine Vehicle, and More eBaydiy Tools
Original price was: $39.99.$30.59Current price is: $30.59.
Opus IVS Mongoose-Plus J2534 OEM Vehicle Interface Cable - Designed for Chrysler/Dodge/Jeep OEM Reprogramming and Diagnostics eBaydiy Tools
Original price was: $1,099.00.$575.00Current price is: $575.00.
Auto Car OBD2 16 Pin Connector, 16 Pin Male Connector Adapter, Standard 16 Pin Male Plug, OBD Shell, OBDII PCB Diagnostic Tool (Blue) eBaydiy Tools
$9.99
🚚 Free Shipping on orders over $75+
📦 Arrives: Mar 20 - Mar 22
🛡️ 2-Year Professional Warranty Included
Guaranteed Safe & Secure Checkout
Additional information
| Manufacturer | OLLGEN |
|---|---|
| Brand | OLLGEN |
| Item Weight | 0.81 ounces |
| Package Dimensions | 3.3 x 2.7 x 0.8 inches |
| Item model number | OL-D0218 |
| Manufacturer Part Number | OL-D0218 |
| Special Features | OBD Male Connector, OBD Male Plug, OBD Shell Plug, OBDii J1962M Adaptor |
| ASIN | B083FF4Y85 |
| Date First Available | January 2, 2020 |
Richard U –
Works well, seems to be well made
This connector works fine with my car. The plastic seems to be fairly strong, at least for ther actual connection. I did not see any molding issues. Overall it seems to be a well made connector. I would happily buy the same type again.
Al Savage –
Quality Control a bit lacking
I’ve bought around (60) of these in the past 3.5 years, and they are fine for what they are. The strain relief has a limited range and doesn’t come close to gripping the cables I install: Cat6 ethernet. I grind a bit off the “nut” end of the strain relief and get a bit more range, then they grip the CAT6 cable OK.
Fred D. –
Great to add OBD2 connectivity to my new car stereo.
Recently replaced the car stereo in my wife’s Elantra. I needed a way to connect to the OBD2 for the steering wheel controls without hacking into the wiring harness. This worked perfectly!
Amazon Customer –
Made a Honda SVC dongle
Made a simple Honda SVC dongle to plug in to the OBD port for safely changing out engine and transmission modules.The case is actually a sturdy part! I was expecting a flimsy thin plastic thing so I was pleasantly surprised
Clyde Pratt –
Check cord for bad wires.
Used to replace bad plug on scan tool.
LR –
Pins 4 and 5 are shorted by design
If you purchase this make sure you want the chassis ground 4 pin and the signal ground 5 pin to short. This could lead to expensive repairs if you somehow have a ground potential between the two pins (4&5). I didn’t want this and didn’t want to return it so under a bright light I identified the location of the trace that shorted the two pins. Once I identified that trace I took a small drill bit and cut through the trace severing the short. Just a little odd.
Amazon Customer –
Junk, pins 4&5 are not supposed to connected. 2 pins on mine are loose, no soder.
Pins 4&5 are not supposed to be connected, one is chassis ground the other sensor ground, 2 pins have no soder on them at all. Not sure what to do with this except throw it away
jose barreto –
Me pareció de muy buena calidad, el acabado de las terminales muy buena
