Autel MaxiSYS VCI100 Wireless Diagnostic Interface, 2026 MaxiVCI VCI V100 Car Communication Interface, OBD2 Connector Adapter Dongle, Compatible for Autel Scanner MS906BT MK906BT MS906TS eBaydiy Tools

Product description

Work with Autel MS906BT/ MS906TS/ MK906BT

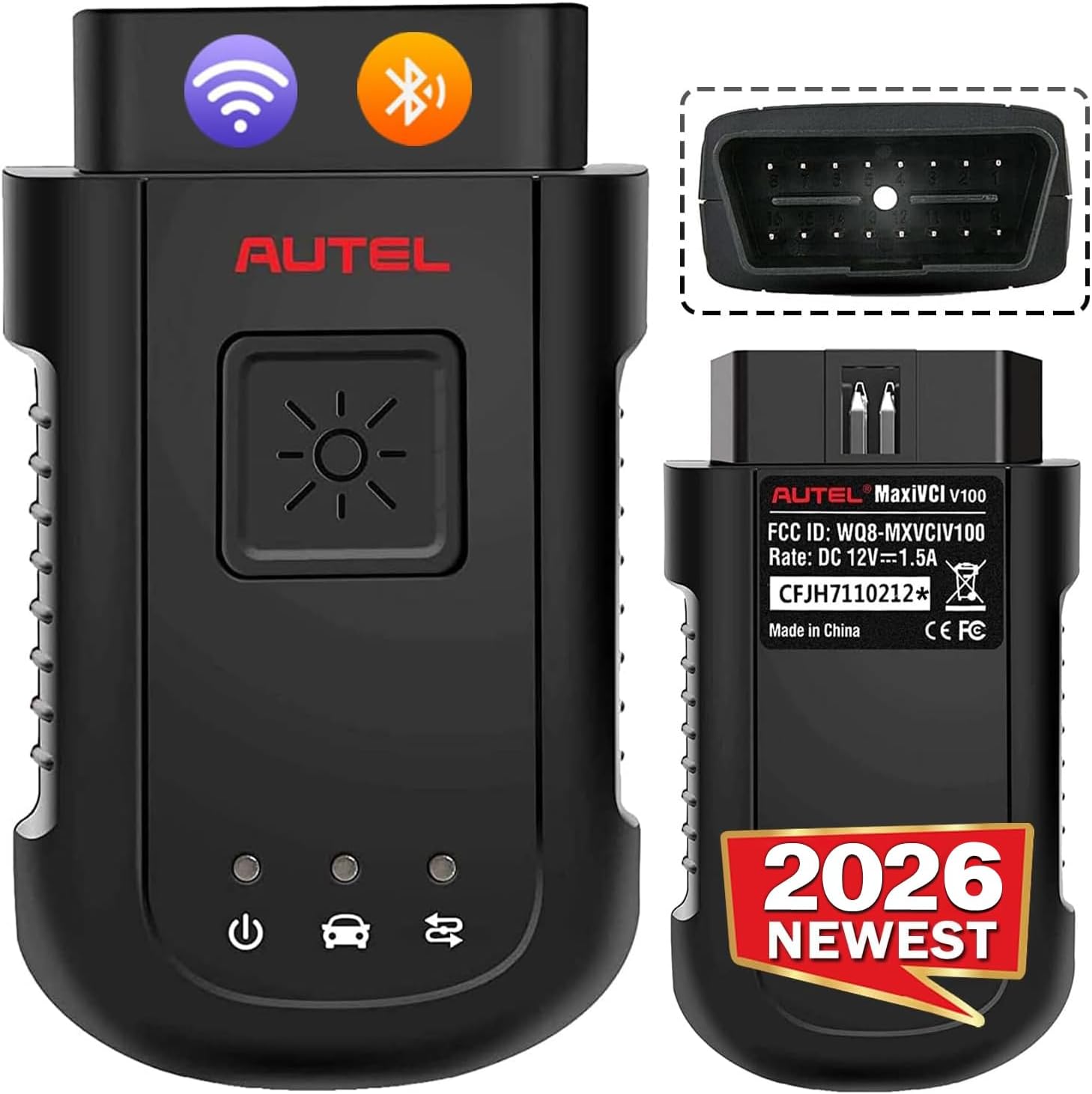

The wireless diagnostic interface MaxiVCI V100 is a small vehicle communication interface (VCI) used to connect to a vehicle’s diagnostic connector (DLC) with the Display scanner, as well as standalone P-C, as a vehicle communication interface (VCI) for vehicle data transmission.

Autel MaxiVCI VCI100 Features:

98.4 feet ultra-distance diagnosis, no longer limited to the 1-meter wired diagnosis distanceReduce communication time and ensure utilitySuperfast OBDII port communication, fast and stable, safe and efficient, low energy consumption.Wirelessly connects ECU to perform ECU Coding, Full TPMS, Bi-directional Control, Services etc.

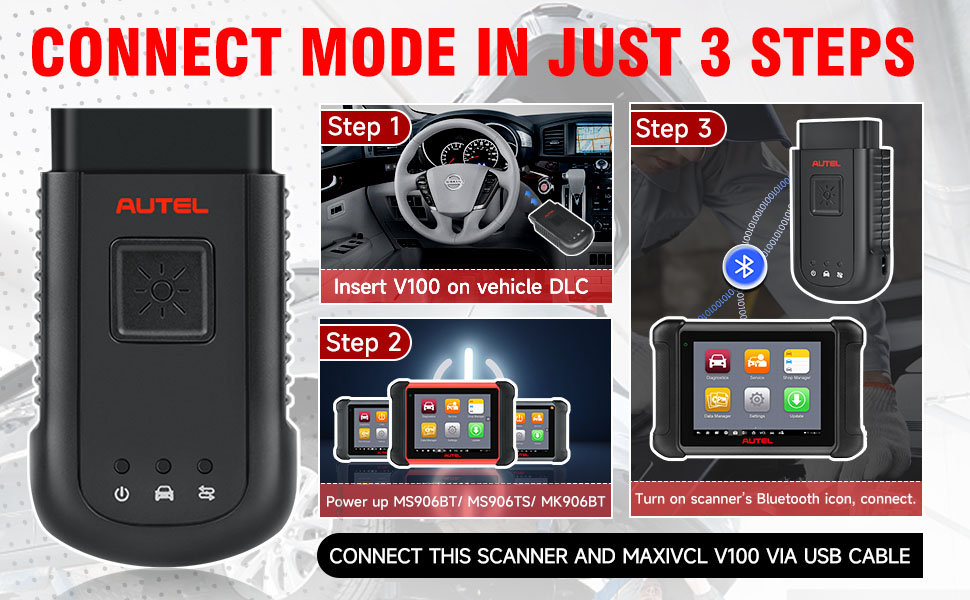

Easy 3 Steps in Two Way

There are 3 Steps to perform OBD II Vehicle Connection:

Step 1: Insert the MaxiVCI V100 on the vehicle’s DLCStep 2: Power up MS906BT/ MS906TS/ MK906BTSteps 3: Turn on scanner icon, connect with VCI100.

To connect to a Non-OBD II Vehicle

1. Locate the required OBD I adapter and connect its 16-pin jack to the Vehicle Data Connector on the MaxiVCI V100. 2. Connect the attached OBD I adapter to the vehicle’s DLC.

USB Cable Connection:

After VCI100 connected with DLC, you can also use USB Cable to conect with Autel scaner,

NOTE: When both the communication methods are applied at the same time, the MaxiCOM system will use the USB communication as the default priority.

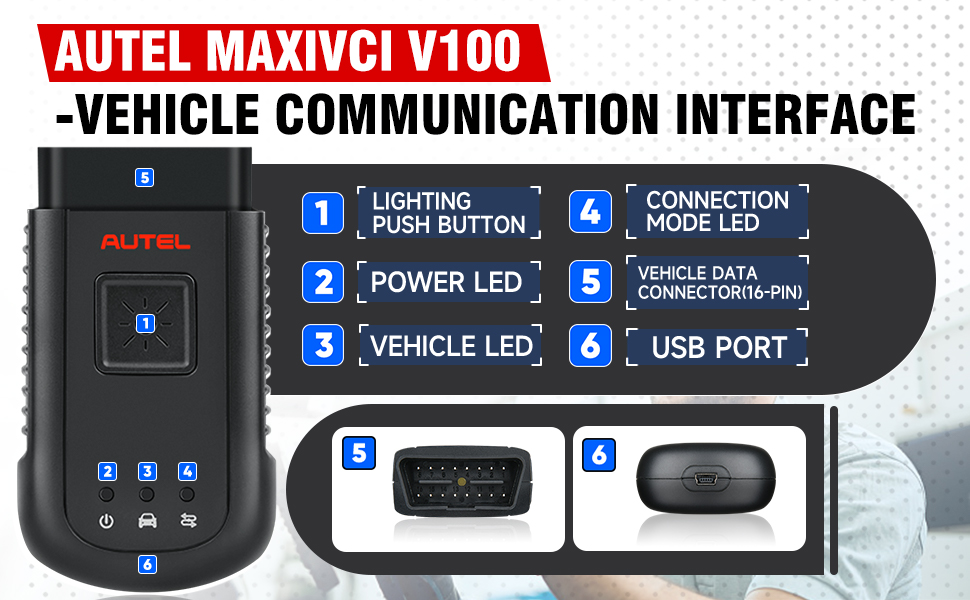

1. Lighting Push Button – presses to turn on the white LED in the vehicle data connector socket 2. Power LED – indicates power and system status Green: illuminates solid green when powered on. Amber: flashes green and amber automatically when performing firmware update. Red: illuminates red automatically when powered up, and flashes red when system failure occurs. 3. Vehicle LED – flashes green when communicating with the vehicle’s system 4. Connection Mode LED – illuminates solid green when the device is properly connected with the Display scanner or P-C via the USB cable, or illuminates solid blue via wireless connection 5. Vehicle Data Connector (16-pin) 6. USB Port

The Wireless Diagnostic Interface supports both the wireless and the USB communication. It can transmit vehicle data to the Display scanner with or without a physical connection. The working range of the transmitter through communication is about 98.4 feet (about 30 m). A signal lost due to moving out of range automatically restores itself when the Display scanner is brought closer to the VCI unit.

Extension Vehicle Coverage When VCI 100 vehicle communication adapter connected to the scanner, it can perform system-wide diagnostic functions on 99% vehicles in the U.S., Europe and Asia to clear DTC and quickly troubleshoot faults.

Wireless Connect With stable connection, the V100 doubles the data transmission rate and further speeds up the diagnostic pace, which is a best choice for technician and repair workshops.

Support Multi-Automotive Protocols Such as L-Line，Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

Specifications:

Communications V.2.1 + EDR USB 2.0 Wireless Frequency 2.4 GHz Input Voltage Range 12 VDC Supply Current 150 mA @ 12 VDC Operating Temperature 0°C to 50°C (ambient) Storage Temperature -20°C to 70°C (ambient) Built-in Battery 3.7V Lithium Battery
👍【2026 AUTEL MAXIVCI V100, WORK WITH MS906BT/MS906TS/MK906BT】Autel MaxiVCI V100 vehicle communication interface works with MS906TS, MK906BT, MS906TS to do ECU coding, bi-directional control, maintenance etc. The working range of VCI 100 is as far as 98.4 feet (30 meters), not limited 1 meter distance. 🚦Note: 1. Autel V100 does not support any other scanners except the above ones. 2. This wireless dongle can NOT be used with ph-one. 3. For any connectivity issues with VCI 100, please reach to us via: 📞auteldirect @ outlook . com📞.
👍【AUTEL WIRELESS CONNECTOR】Autel MaxiVCI V100 wireless diagnostic interface is a mini dongle, used to connect the car DLC port with MaxiSys tablet or P-C, which display the overall car diagnose result in the form of DTC on the scanner. It can offer intuitive repair guidance for professional technicians and auto repair shops.
👍【ULTRA-LONG WORKING RANGE】This Autel VCI V100 Wireless Diagnostic Interface working range is up to 98.4 feet (30 meters). Compared with 3.3 feet limited distance of MS906, VCI100 expand diagnose distance by 30 times. Autel MaxiVCI V100 has low energy consumption, low latency and enhanced anti-interference ability, which further improves cruising ability of the tablet. Note: When the signal range is out of range, the connection will be auto disconnected, and restored after entering the working range.
📢Note: Before connecting or disconnecting the VCI, make sure the vehicle ignition switch is off to avoid instantaneous current shock caused by hot plugging and unplugging, which may damage the VCI.
👍【TWO CONNECTION METHODS, EASY TO USE】Autel car wireless box MaxiVCI V100 is a bridge between the car and scanner, easy to connect. Only need three steps to connect instantly: Step 1: insert V100 into the car DLC; Step 2: power on scanner; Step 3: open the scanner’s settings and connect. In addition, the VCI100 is also directly connected to USB cable to establish communication with the scanner, and the system will give priority to USB communication.
👍【THREE WAYS TO CHARGING, LED LIGHT DESIGN】Autel MaxiVCI V100 can not only be charged through the OBD II/ EOBD compliant Data Link Connector (DLC), but also can be powered through a USB cable or P-C connection. The three indicator lights designed on the fuselage correspond to the power indicator light, the car communication indicator light and the connection mode indicator light respectively, and judge the VCI connection status and communication status according to different colors.
👍【1-YEAR WARRANTY, NO-WORRY RETURN AND REPLACEMENT】 Autel MaxiVCI V100 interface is only compatible with MS906BT/ MK906BT/ MS906TS. If your VCI100 is broken due to long-term use, you can buy this product and replace it. Our products has 1 year warranty. If you have any issues or questions, please reac.h us via 👉auteldirect @ outlook. com immediately.
